Ref No.	Part No.	Description

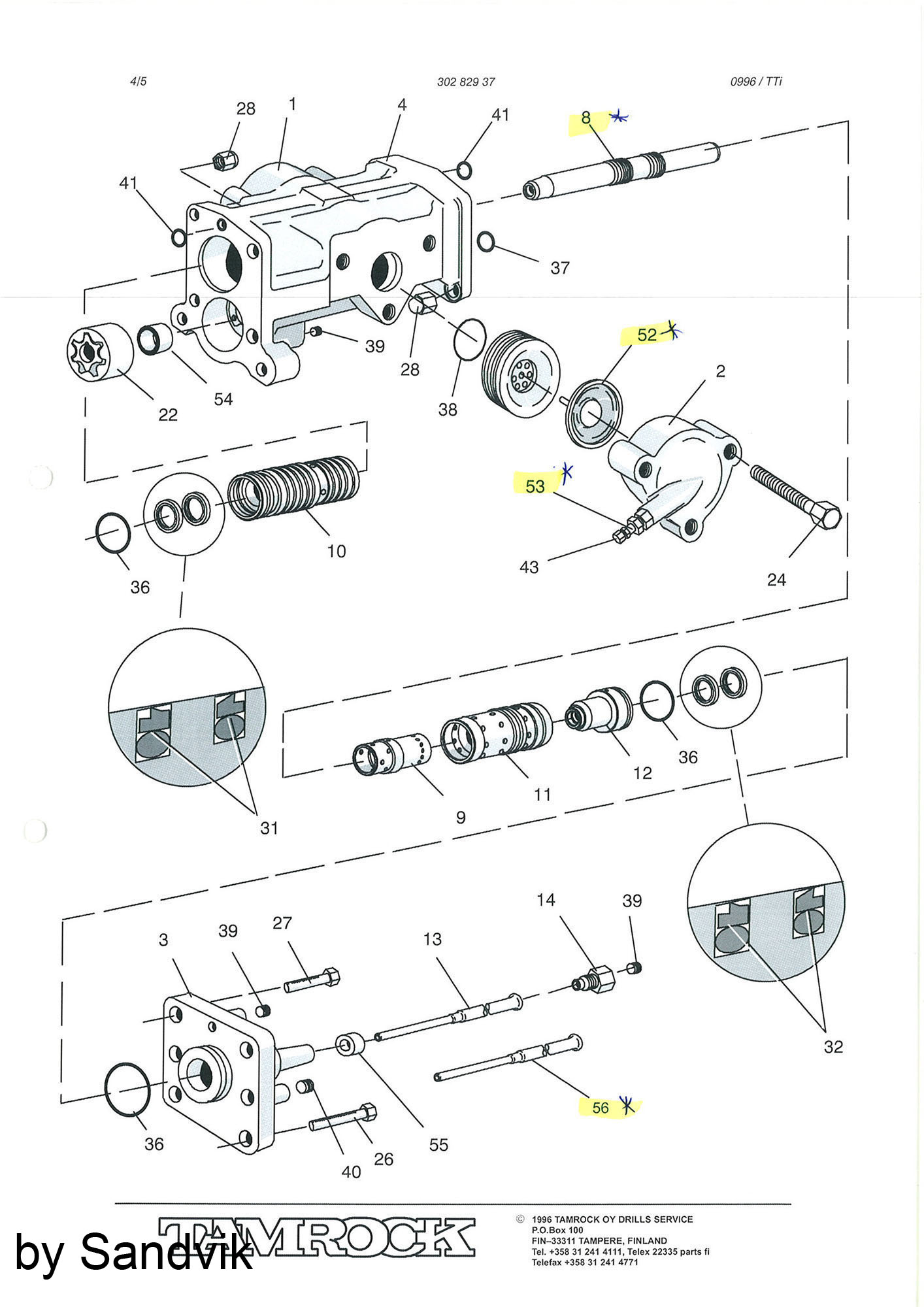

0	30282937	HYDRAULIC ROCK DRILL
1	15237688	HIGH PRESSURE ACCUMULATOR
2	15237708	LOW PRESSURE ACCUMULATOR
3	14534788	REAR COVER
4	14574818	BODY CYLINDER ASSY
8	14443258	PISTON
9	14281078	DISTRIBUTOR
10	14443388	FRONT CYLINDER
11	14443408	DISTRIBUTOR CYLINDER
12	14281108	REAR CYLINDER
13	09220568	FLUSHING PIPE ASSY
14	08767708	NIPPLE
22	09223468	GEROTOR
24	80053869	BOLT
26	80232259	BOLT
27	80717729	BOLT
28	14073328	CAP NUT
31	14079668	SEAL
32	14079798	SEAL
36	86581689	O RING
37	86581559	O-RING
38	81873539	O-RING
39	86582159	PLUG
40	86582289	PLUG
41	52203740	O RING
43	85168219	CAP
52	15225488	DIAPHRAGM
53	80759069	VALVE
54	81503519	NEEDLE BEARING
55	08721338	RUBBER SEAL
