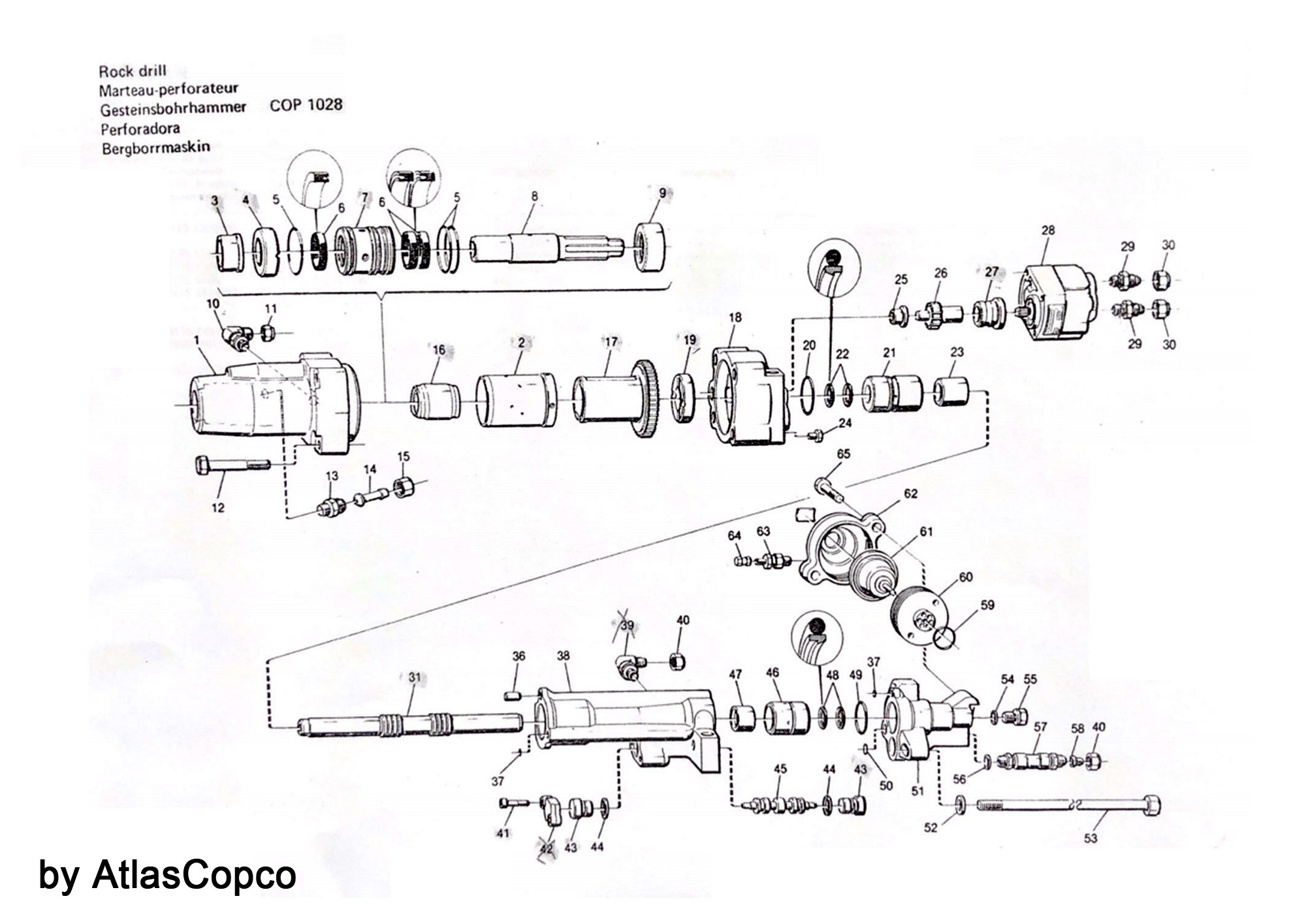

| Ref No. | Part No. | Description |
|---|---|---|
| 0 | 3115105280 | SEAL HOUSING. FRONT. COMPL. |
| 0 | 3115120090 | PISTON SET |
| 0 | 3115133980 | FRONT HEAD COMPL |
| 0 | 3115147690 | SEAL KIT |
| 0 | 0259201300 | THREAD INSERT |
| 0 | 0259207303 | THREAD INSERT |
| 0 | 3115105080 | GEAR HOUSING |
| 2 | 3115134000 | BEARING |
| 3 | 3115134600 | BUSHING |
| 4 | 3115146600 | STOP RING |
| 7 | 3115146700 | FLUSHING HEAD |
| 8 | 7802350201 | ADAPTER |
| 8 | 7802350301 | ADAPTER |
| 8 | 7809350201 | ADAPTER |
| 8 | 7809350301 | ADAPTER |
| 9 | 3115146800 | BEARING RACE |
| 10 | 3176635200 | NIPPLE |
| 11 | 3176542900 | CAP |
| 12 | 0147148303 | SCREW. HEX HEAD |
| 13 | 9000034100 | HEXAGON NIPPLE |
| 14 | 3115107700 | NIPPLE |
| 15 | 9000033100 | COUPLING NUT |
| 16 | 3115147000 | DRIVER |
| 17 | 3115146900 | ROT.CHUCK |
| 19 | 3115105100 | THRUST BEARING |
| 20 | 0663613401 | ORING |
| 22 | 3115105400 | SET OF SEALS |
| 23 | 3115125300 | PISTON GUIDE. FRONT |
| 24 | 3115135100 | PLUG |
| 25 | 3115105500 | BEARING |
| 26 | 3115105600 | GEAR WHEEL |
| 27 | 3115105700 | BRASS BUSHING |
| 28 | 3115105880 | HYDRAULIC MOTOR |
| 29 | 3176651200 | NIPPLE |
| 30 | 3176531300 | CAP |
| 36 | 0102045800 | PIN |
| 37 | 0663211401 | ORING |
| 47 | 3115106400 | GUIDE REAR |
| 48 | 3115106500 | SEAL KIT |
