| Ref No. | Part No. | Description |
|---|---|---|

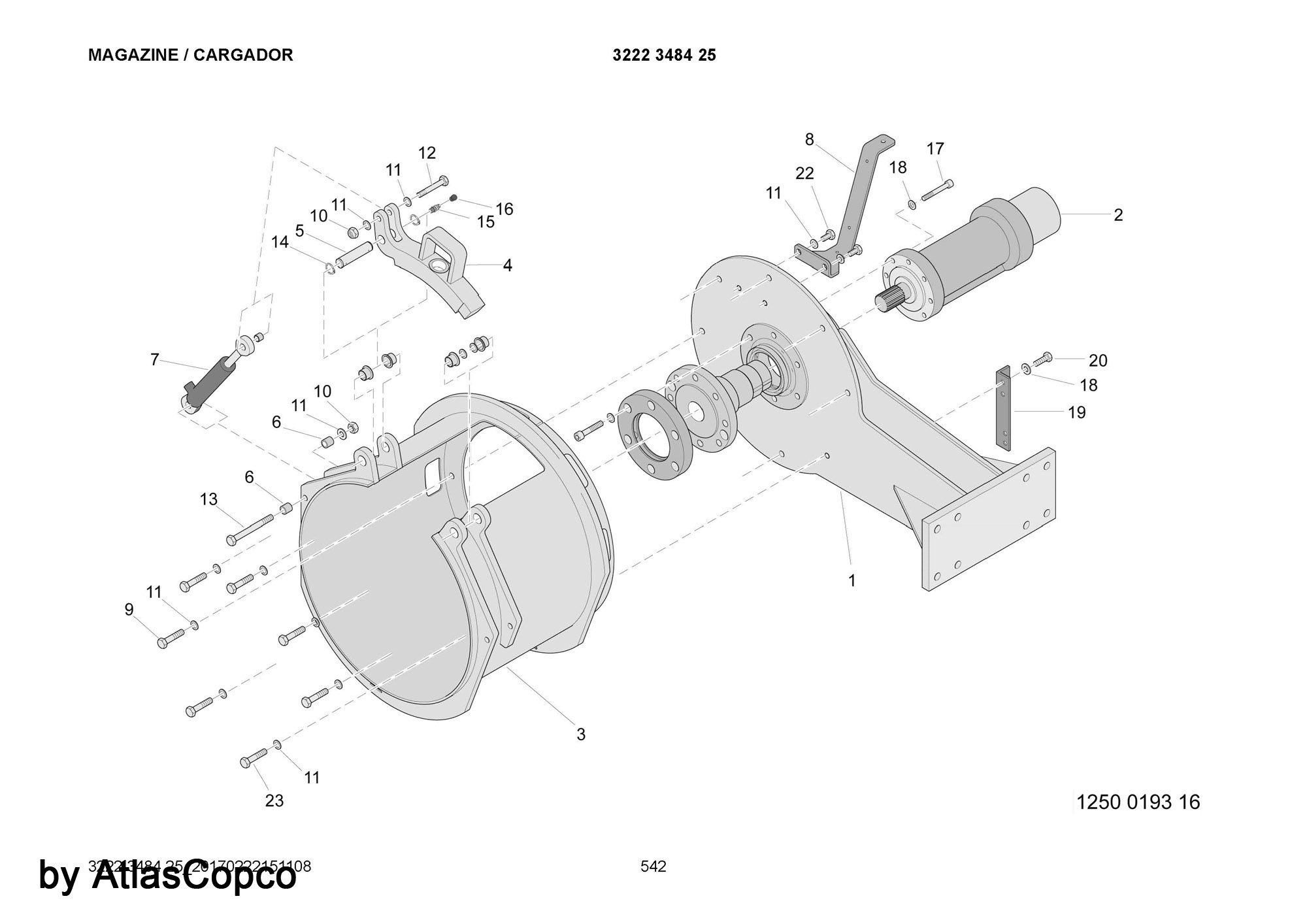

| 0 | 3222348425 | MAGAZINE |
| 1 | 3222093590 | ATTACHMENT |
| 3 | 3222323799 | PROTECTION |
| 4 | 3222310321 | HOOK |
| 5 | 3222315329 | PIVOT |
| 6 | 3222315328 | SPACER |
| 7 | 3222341161 | HYDR. CYLINDER |
| 8 | 3222326058 | LAMP ATTACHMENT |
| 9 | 0147140503 | SCREW. HEX HEAD |
| 10 | 0291112822 | LOCK NUT |
| 11 | 3315019508 | LOCK WASHER |
| 12 | 0147140903 | SCREW. HEX HEAD |
| 13 | 0147141703 | SCREW. HEX HEAD |
| 14 | 0335112200 | CIRCLIP |
| 15 | 0544256200 | GREASE NIPPLE |
| 16 | 0686925227 | PROTECTION CAP |
| 17 | 0211196315 | SCREW |
| 18 | 3315019506 | LOCK WASHER |
| 19 | 3222325851 | ATTACHMENT |
| 20 | 0147136303 | SCREW. HEX HEAD |
| 21 | 3222325967 | SPACER |
| 22 | 0147139803 | SCREW. HEX HEAD |
| 23 | 0147140103 | SCREW. HEX HEAD |
