| Ref No. | Part No. | Description |
|---|---|---|

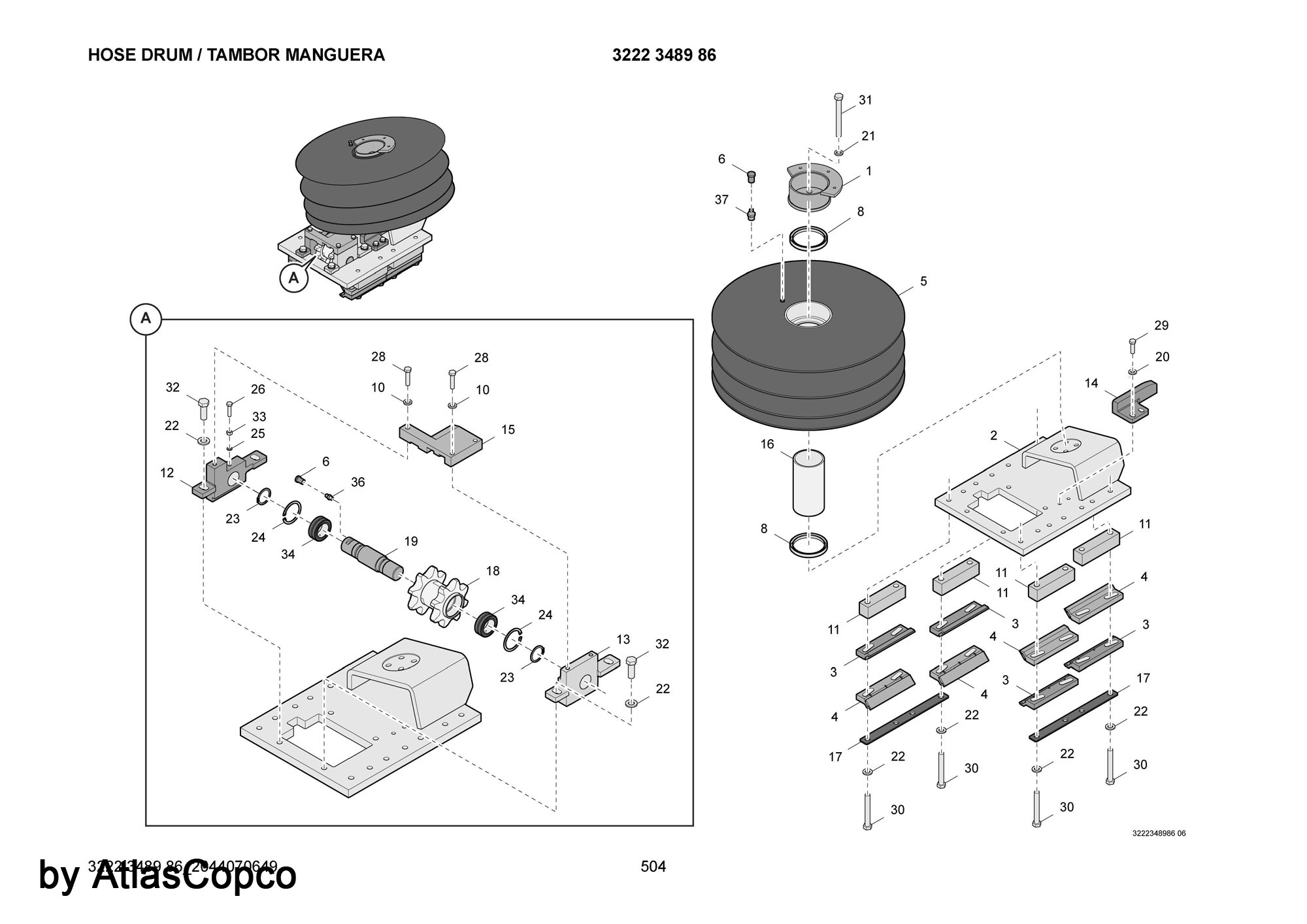

| 0 | 3222348986 | HOSE DRUM |
| 1 | 3222326112 | ATTACHMENT |
| 2 | 3222348987 | CRADLE PLATE |
| 3 | 3128306163 | HOLDER SET |
| 4 | 3128306164 | HOLDER SET |
| 5 | 3222323321 | HOSE DRUM |
| 6 | 0686925227 | PROTECTION CAP |
| 8 | 0666671800 | RADIAL LIP SEAL |
| 10 | 0333520014 | LOCK WASHER |
| 11 | 3222320847 | SPACER |
| 12 | 3222339238 | PLATE |
| 13 | 3222339239 | PLATE |
| 14 | 3222340277 | GUIDE |
| 15 | 3222339615 | PROTECTION |
| 16 | 3222339613 | PIPE |
| 17 | 3222324222 | WASHER |
| 18 | 3222338956 | SPROCKET WHEEL |
| 19 | 3222338958 | SHAFT |
| 20 | 0333520009 | LOCK WASHER |
| 21 | 3315019510 | LOCK WASHER |
| 22 | 0333520008 | LOCK WASHER |
| 23 | 0335114000 | CIRCLIP |
| 24 | 0335215200 | CIRCLIP |
| 25 | 3315019504 | LOCK WASHER |
| 26 | 0147132712 | SCREW. HEX HEAD |
| 28 | 0147136603 | SCREW. HEX HEAD |
| 29 | 0147140303 | SCREW. HEX HEAD |
| 30 | 0147149203 | SCREW. HEX HEAD |
| 31 | 0147150003 | SCREW. HEX HEAD |
| 32 | 0147147803 | SCREW. HEX HEAD |
| 33 | 0266211000 | NUT |
| 34 | 3222339584 | BEARING |
| 36 | 0544210600 | GREASE NIPPLE |
| 37 | 0544216200 | GREASE NIPPLE |
