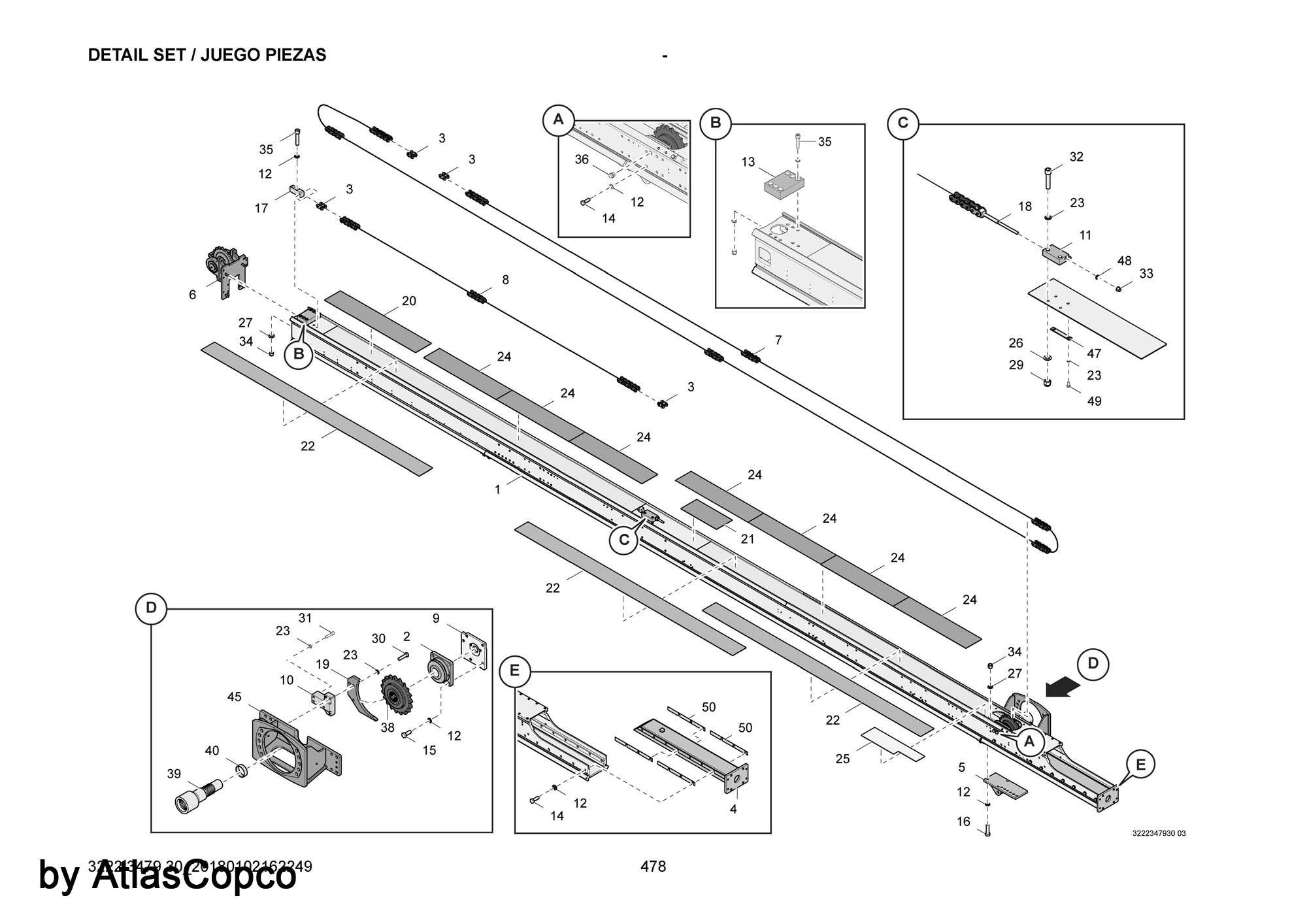

Ref No. Part No. Description
1 3222347001 FEED BEAM
2 3222343113 BEARING UNIT
3 3222340627 CHAIN LOCK
4 3222320837 FOOT BEAM
5 3222344096 ATTACHM. PLATE
7 3222338846 ROLLER CHAIN
8 3222338847 ROLLER CHAIN
9 3222338948 SPACER
10 3222340375 SPACER
11 3222342447 ATTACHMENT
12 3315019510 LOCK WASHER
13 3222339644 STOP BLOCK
14 0147147803 SCREW. HEX HEAD
15 0147147703 SCREW. HEX HEAD
16 0147148103 SCREW. HEX HEAD
17 3222339647 ATTACHMENT
18 3222342446 CHAIN TENSIONER
19 3222340374 GUIDE
20 3222340274 WEAR PLATE
21 3222341498 WEAR PLATE
22 3222340273 WEAR PLATE
23 3315019508 LOCK WASHER
24 3222348001 WEAR PLATE
25 3222340631 WEAR PLATE
26 0301235800 WASHER
27 0301237800 PLAIN WASHER
29 0291112822 LOCK NUT
30 0147140403 SCREW. HEX HEAD
31 0211140503 SCREW
32 0211140703 SCREW
33 0291112838 LOCK NUT
34 0291112825 LOCK NUT
35 0211196479 HEX SOCK. SCREW
36 0686371635 PLUG
38 3222342457 SPROCKET WHEEL
39 3222342456 SPLINED SHAFT
40 3222340004 SPACER
45 3222338945 MOTOR BRACKET
47 3222342452 PLATE
48 0333520008 LOCK WASHER
49 0147140003 SCREW. HEX HEAD
50 3222332009 SHIM
