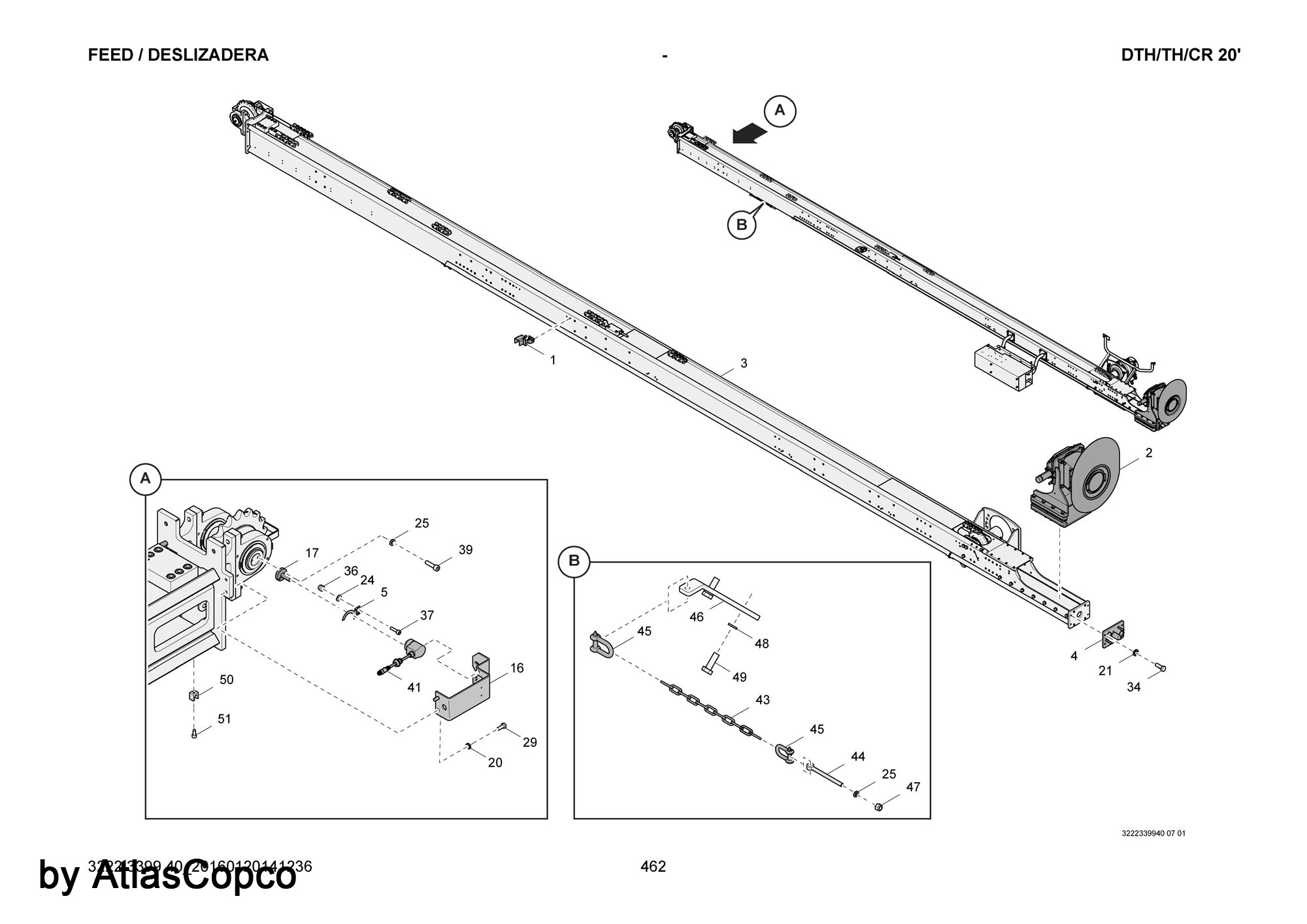

| Ref No. | Part No. | Description |
|---|---|---|
| 1 | 3222324121 | ASSEMBLY SET |
| 2 | 3222323118 | DRILL STEEL SUP |
| 4 | 3222323127 | DOWEL |
| 6 | 3222339924 | HOLDER |
| 7 | 3222348004 | COVER PLATE |
| 8 | 3222319922 | HYDR. CYLINDER |
| 9 | 3222323414 | COVER |
| 11 | 3222323379 | BRACKET |
| 12 | 3222236300 | BOLT |
| 13 | 3128305206 | STOP |
| 16 | 3222332603 | PLATE |
| 17 | 3222311632 | DISK |
| 18 | 3128305639 | SHAFT |
| 20 | 3315019506 | LOCK WASHER |
| 21 | 3315019508 | LOCK WASHER |
| 22 | 3315019510 | LOCK WASHER |
| 23 | 0129310400 | BLIND RIVET |
| 24 | 0301231500 | PLAIN WASHER |
| 25 | 3315019504 | LOCK WASHER |
| 26 | 3222316852 | SIGN |
| 28 | 0147136003 | SCREW. HEX HEAD |
| 29 | 0147136203 | SCREW. HEX HEAD |
| 30 | 0216110008 | HEX SOCK. SCREW |
| 31 | 0291112822 | LOCK NUT |
| 32 | 0147196030 | SCREW. HEX HEAD |
| 33 | 0147140003 | SCREW. HEX HEAD |
| 34 | 0147140203 | SCREW. HEX HEAD |
| 35 | 0147147603 | SCREW. HEX HEAD |
| 36 | 0291112813 | LOCK NUT |
| 37 | 0211117303 | SCREW |
| 39 | 0211132603 | SCREW |
| 41 | 3222312220 | PULSE SENSOR |
| 43 | 0369100005 | CHAIN |
| 44 | 3216919300 | EYE BOLT |
| 45 | 0372410010 | SHACKLE |
| 46 | 3222339980 | PLATE |
| 47 | 0291112818 | LOCK NUT |
| 48 | 0333520014 | LOCK WASHER |
| 49 | 0147136303 | SCREW. HEX HEAD |
| 50 | 3222305812 | HOSE HOLDER |
| 51 | 0226035107 | TAPPING SCREW |
| 52 | 0346100205 | PIPE CLAMP |
