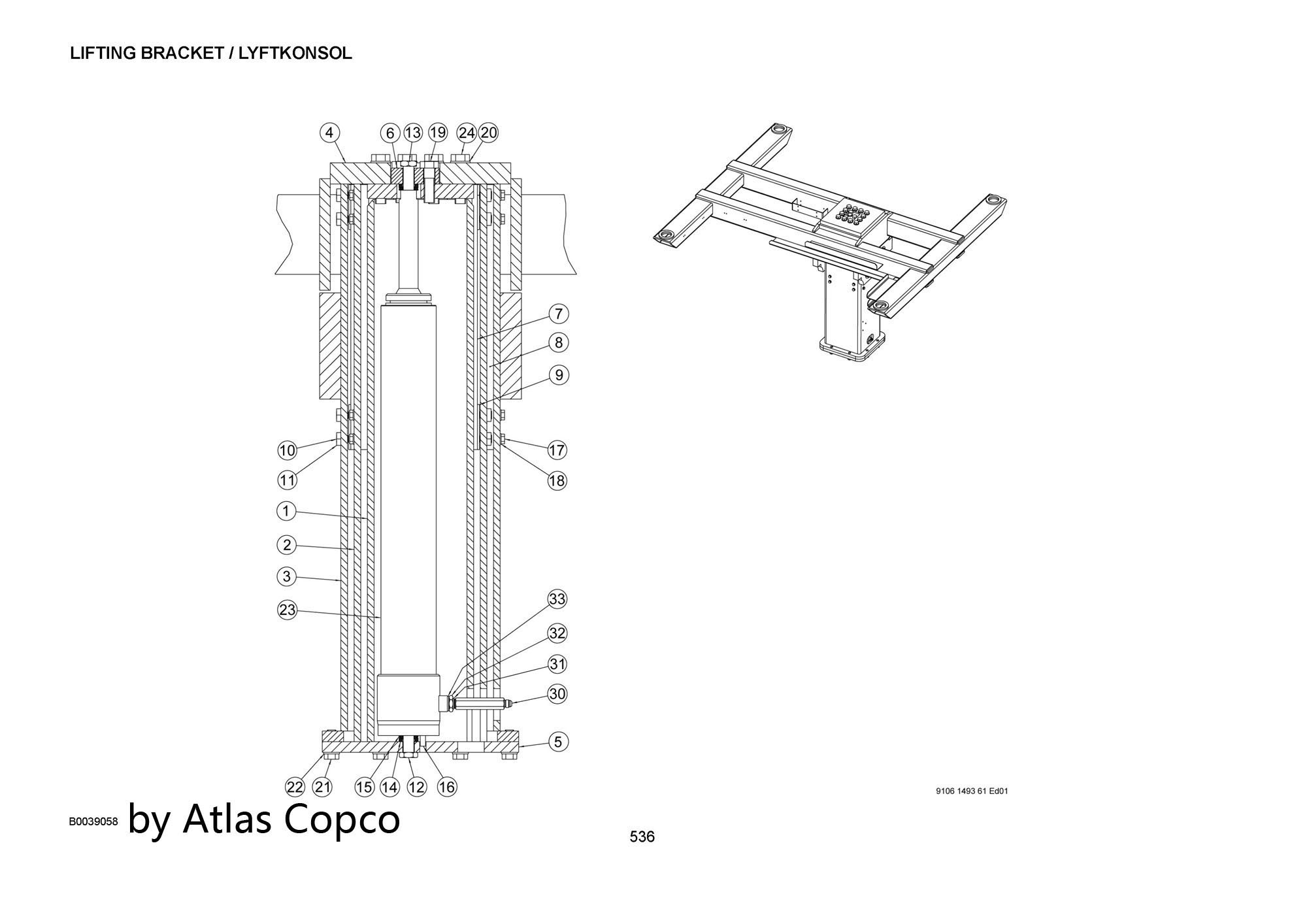

Ref No. Part No. Description
2 9106149363 INTERM. TUBE
4 9106149305 FRAME
6 9106149307 WASHER
7 9106149393 SLIDE BAR
8 9106149394 SLIDE BAR
9 9106149390 BUSHING
10 0192147500 SET SCREW
11 0261211400 NUT
12 3217699300 SCREW
14 0304101200 SPERIC WASHER
15 0304106200 SPERIC WASHER
16 0108339200 SPRING PIN
19 0147155203 SCREW. HEX HEAD
21 0147147803 SCREW. HEX HEAD
23 9106149320 HYDR. CYLINDER
24 0211196206 SCREW
30 9110832400 NIPPLE
32 0605881406 BUSHING
33 0661103300 SEAL WASHER
