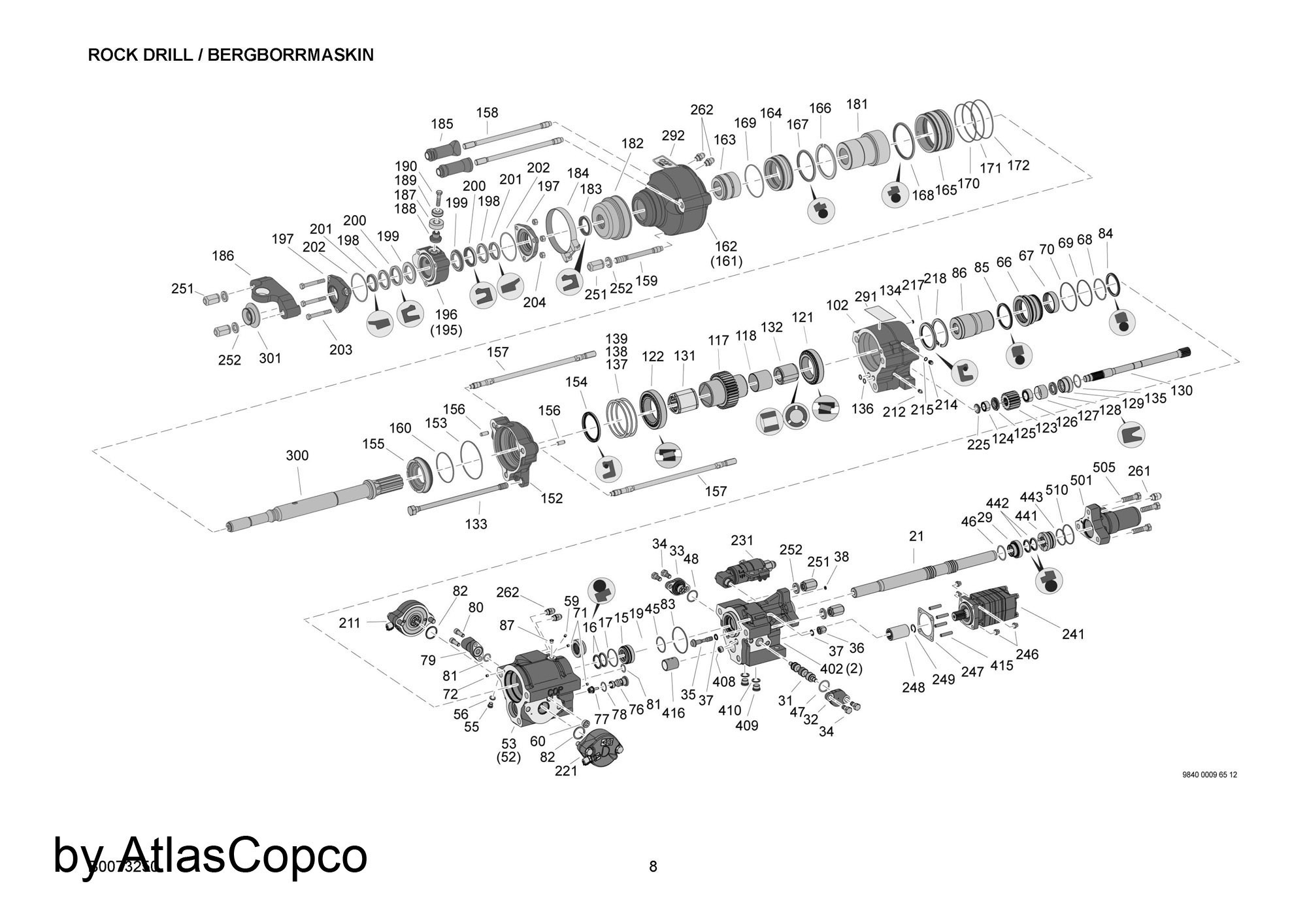

Ref No. Part No. Description
0 0686925026 PLUG
0 0686925027 PLUG
2 3115194480 CYLINDER
14 3115276680 SEAL HOUSING COMPL
16 3115097000 SEAL KIT
17 0663613600 ORING
19 3115167100 PISTON GUIDE
21 3115212900 PISTON
24 3115277280 SEAL HOUSE COMP
29 3115168000 PISTON GUIDE
31 3115176500 VALVE PISTON
32 3115207703 VALVE COVER
33 3115207605 VALVE COVER
34 0147143803 SCREW. HEX HEAD
35 3115329100 REG. PLUG
36 3115321400 NUT
37 3115169700 SEAL WASHER
38 3115324500 SEAL RING
45 0663613401 ORING
47 0663213301 ORING
52 3115258386 INTERMIDIATE
53 3115258345 INTERMEDIATE PART
55 0686644200 PLUG
56 0661102000 SEAL WASHER
59 3115174606 NOZZLE
60 3115240100 PLUG
66 3115347400 LINER
67 3115374400 BUSHING
68 0335350010 LOCK RING
69 0663210596 ORING
70 0663210494 ORING
72 0196131800 SET SCREW
76 3115238400 VALVE SEAT
77 3115238300 VALVE CONE
78 3115329018 SEAL RING
79 3115345500 CONNECT. PLATE
80 0211196084 SCREW
81 0663210062 ORING
82 3115298800 SEAL RING
83 3115514601 SEAL RING
84 3115187900 SEAL KIT
85 3115188000 SEAL KIT
86 3115297100 DAMPING PISTON
87 0686911000 PROTECTION PLUG
102 3115234080 GEAR HOUSING
116 3115173281 ROTATION CHUCK COMPL
118 3115188100 BUSHING
121 0509022100 ROLLER BEARING
122 0509022300 ROLLER BEARING
123 3115027400 GEAR WHEEL
124 0516150401 NEEDLE BEARING
125 3115082300 WASHER
126 0516153800 NEEDLE BEARING
127 3115082400 SLEEVE
128 0667120600 SEAL
129 3115274200 GUIDE SLEEVE
130 3115082100 SHAFT
131 3115158200 DRIVER
132 3115296801 ROT.CH.BUSHING
133 3115145700 SIDE BOLT
136 0663212000 ORING
137 3115029701 SHIM
138 3115029702 SHIM
139 3115029703 SHIM
152 3115360910 COVER
153 0663210166 ORING
154 0666719001 RADIAL LIP SEAL
155 3115361000 SPACER
156 0102046000 PIN
157 3115361100 SIDE BOLT
158 3115361200 STUD
159 3115361300 STUD
160 0663210633 ORING
161 3115360881 FRONT PART COMP
162 3115360810 FRONT PART
163 3115222302 GUIDE
164 3115348400 EXTRACTOR LINER
165 3115347500 EXTRACTOR LINER
166 0335217700 CIRCLIP
167 3115205500 SEAL KIT
168 3115211600 SEAL KIT
169 0663614701 ORING
181 3115316500 PISTON
182 3115352800 SEAL RETAINE
183 3115238600 CUP SEAL
184 0347620074 HOSE CLIP
185 3115320000 SLEEVE
186 3115320100 ATTACHMENT
187 3115306300 BUSHING
188 3115306100 PIN
189 3115306200 WASHER
190 0147140503 SCREW. HEX HEAD
195 3115319081 FLUSH HEAD
197 3115319501 COVER
198 3115319602 GUIDE
199 3115319702 GUIDE
201 3115323600 WIPER
203 0147141303 SCREW. HEX HEAD
204 0266211200 NUT
211 3115345181 ACCUMULATOR
212 0544216200 GREASE NIPPLE
214 0686420103 PLUG
215 0653903800 GASKET
217 0666718801 RADIAL LIP SEAL
218 0335216900 CIRCLIP
221 3115351181 ACCUMULATOR
225 3115027300 WASHER
231 3115261591 RETURN ACCUM.
241 3115347381 HYDRAULIC MOTOR
241 3115347383 HYDRAULIC MOTOR
241 3115347385 HYDRAULIC MOTOR
246 3115354800 NUT
247 3115032700 GASKET
248 3115027700 COUPLING
249 0335213000 CIRCLIP
251 3115028600 DOME NUT
252 3115028700 WASHER
261 3176651400 NIPPLE
262 3176651200 NIPPLE
291 3115316400 LABEL
292 3115330800 LABEL
300 7490003552 SHANK ADAPTER
300 7490003553 SHANK ADAPTER
301 3115223200 DRILL COLLAR
408 3115182500 PIPE PLUG
409 0686644704 PLUG
410 0661103400 SEAL WASHER
415 3115116500 STUD
416 3115211200 GUIDE
442 3115115600 SEAL KIT
443 0663613500 ORING
501 3115348100 BACK HEAD
505 0147148103 SCREW. HEX HEAD
510 0663613800 ORING
