Ref No. Part No. Description

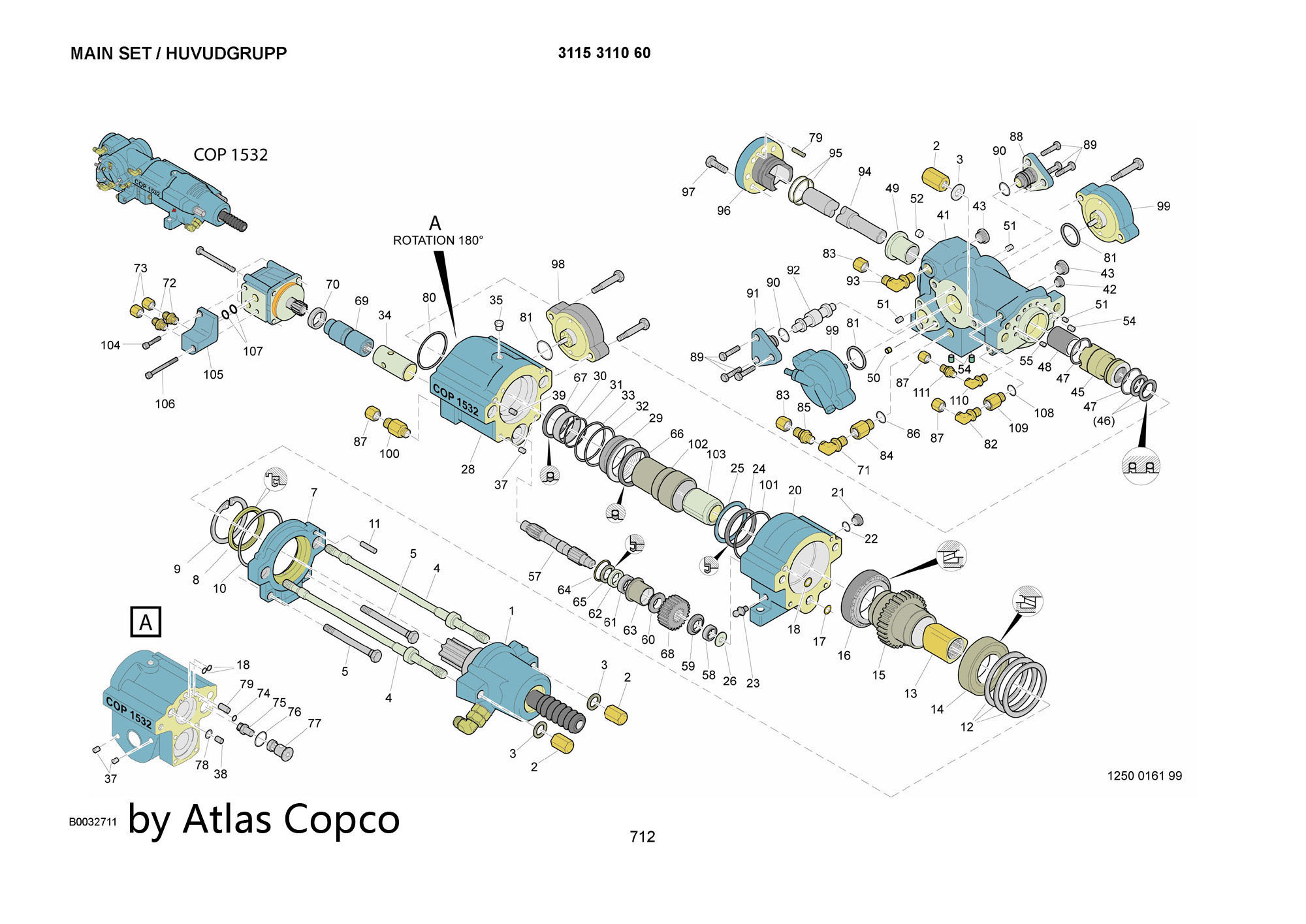

0 3115311060 MAIN SET
1 3115324600 FRONT PART
2 3115028600 DOME NUT
3 3115028700 WASHER
4 3115245500 SIDE BOLT
5 3115245600 SCREW
6 3115242980 COVER COMPL.
7 3115242900 COVER
8 0666719001 RADIAL LIP SEAL
9 0335217300 CIRCLIP
10 0663615200 ORING
11 0102047300 PIN
12 3115254102 SHIM
12 3115254103 SHIM
12 3115254101 SHIM
13 3115158200 DRIVER
14 0509012111 ROLLER BEARING
15 3115243100 ROT.CHUCK
16 0509022300 ROLLER BEARING
17 0663212000 ORING
18 0663211800 O-RING
19 3115243080 GEAR HOUSING
20 3115243000 GEAR HOUSING
21 0686420103 PLUG
22 0653903800 GASKET
24 0666600030 RADIAL LIP SEAL
25 3115245900 WASHER
26 3115027300 WASHER
27 3115330080 INTERM. COMPL.
28 3115330001 INTERMED. PART
29 3115267000 LINER
30 3115208400 BUSHING
31 0335350010 LOCK RING
32 0663210494 ORING
33 0663210596 ORING
34 3115244900 PLAIN BEARING
35 0686911000 PROTECTION PLUG
37 0259206100 THREAD INSERT
38 0196139700 SET SCREW
39 0190131800 SET SCREW
40 3115311080 CYLINDER COMPL.
41 3115311000 CYLINDER
42 0686371801 PLUG
43 0686371803 PLUG
45 3115243500 SEAL HOUSING
46 3115255400 SET OF SEALS
47 0663210577 O-RING
48 3115336200 PISTON GUIDE
49 3115311600 PISTON GUIDE
50 0259008400 THREAD INSERT
51 3115174606 NOZZLE
52 3115182500 PIPE PLUG
53 0196131800 SET SCREW
54 0259008600 THREAD INSERT
55 3115312200 NOZZLE
56 3115311880 SHAFT COMPL.
57 3115311800 SHAFT
58 0516150401 NEEDLE BEARING
59 3115082300 WASHER
60 3115244500 WASHER
61 0516153800 NEEDLE BEARING
62 3115244600 SPACER
63 3115244700 GUIDE SLEEVE
64 0663613500 ORING
65 3115083925 SEAL RING
66 3115187900 SEAL KIT
67 3115188000 SEAL KIT
68 3115244400 GEAR WHEEL
69 3115311700 COUPLING
70 3115245200 SPACER
71 3115145900 NIPPLE
74 0663212200 ORING
75 3115238300 VALVE CONE
76 0663212901 ORING
77 3115238400 VALVE SEAT
78 0663212501 O-RING
79 0102046000 PIN
80 0663614000 ORING
81 3115298800 SEAL RING
84 3115312000 BUSHING
85 3176651600 NIPPLE
88 3115311300 VALVE COVER
89 0147196170 SCREW. HEX HEAD
90 0663212801 O RING
91 3115311200 VALVE COVER
92 3115311100 VALVE PISTON
94 3115243300 PISTON
95 0663210055 O-RING
96 3115245800 BACK HEAD
98 3115270080 DAMPER ACCUMULATOR
99 3115269680 ACCUMULATOR
101 0663210174 O-RING
102 3115311500 DAMPING PISTON
103 3115311400 ROT.CH.BUSHING
104 0211195770 SCREW
105 3115312100 CONNECT. PLATE
106 0211195779 SCREW
107 0663212700 ORING
110 3115302500 NIPPLE
111 3115301400 NIPPLE
